Our innovative CFD/FEA-based design optimization has been successfully applied to numerous green energy and renewable energy projects
with traceable proven accomplishments. With the design inputs (such as discharge and head) specified by customers, our proprietary 3D inverse design tools can create all the components of any types of turbomachinery in minutes. Our state-of-the-art design optimization software can generate the high-quality mesh automatically and optimize the turbomachinery quickly to achieve high hydrodynamic/aerodynamic
performance. It can be easily extended to develop many other industrial products.
Francis Hydro-Turbine with Splitter Blades

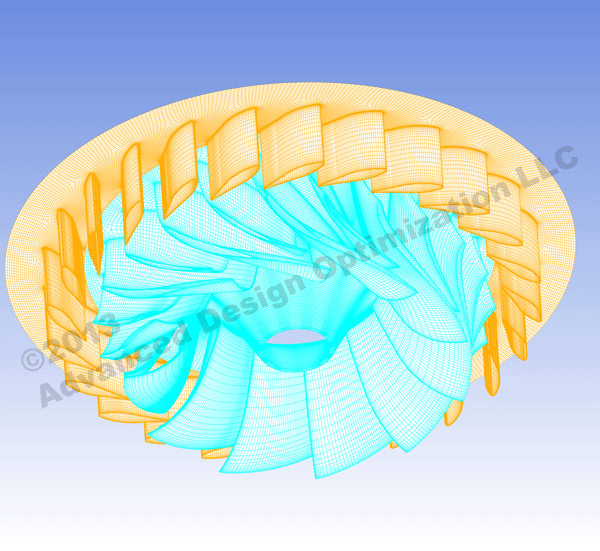

Multi-block structured CFD mesh generated by our proprietary mesh generator

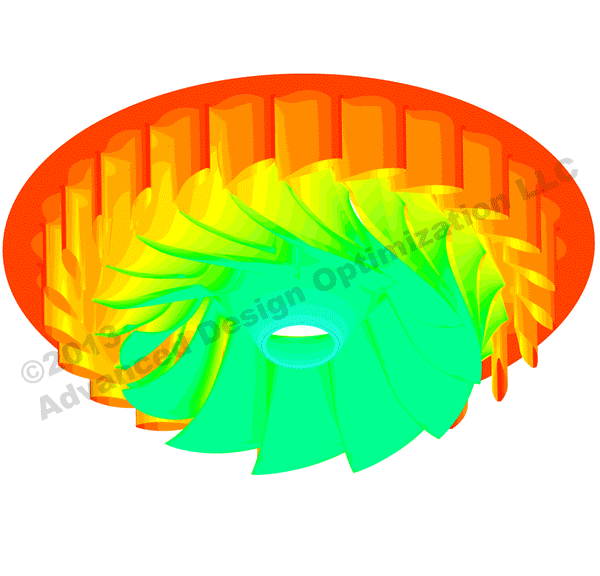

CFD results for optimized model of a Francis hydro-turbine with splitter blades
Bulb Hydro-Turbine with Wicket-Gates

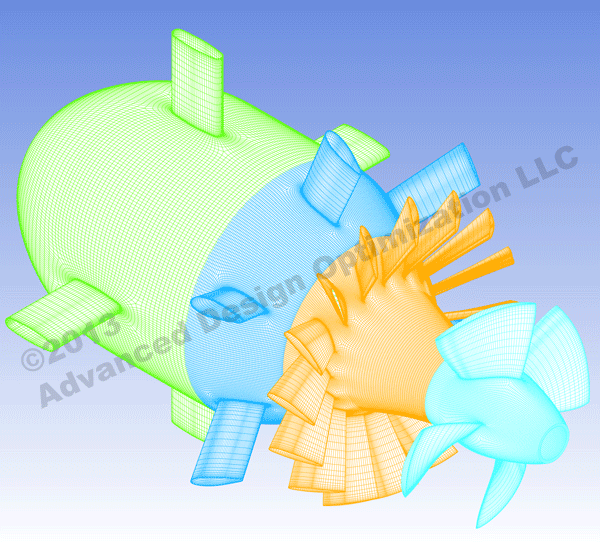

Multi-block structured CFD mesh generated by
our proprietary mesh generator

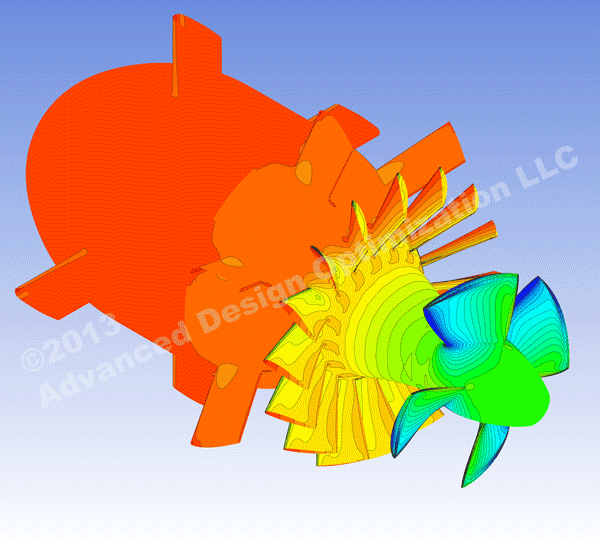

CFD results for optimized model of a bulb hydro-turbine
Hydro-Pump-Turbine
Multi-block structured CFD mesh generated by
our proprietary mesh generator

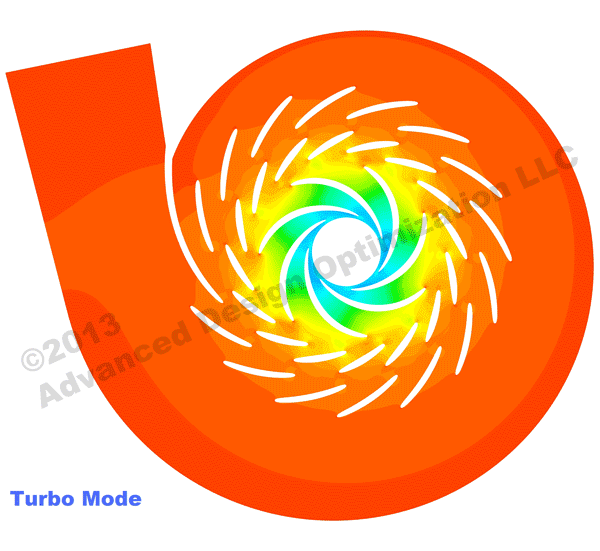

CFD results for optimized model of a hydro pump-turbine
